Plot a 2D embedding with Smooth-EM component means overlaid

Plot an \(n \times 2\) embedding (e.g., two selected dimensions, PCA/t-SNE/UMAP) and overlay the Smooth-EM component means (mu_list) as points connected by arrows. Optionally color observations by a continuous vector (e.g., a Fiedler vector).

plot_EM_embedding2D(
  mu_list,
  X2,
  t_vec = NULL,
  mu_order = NULL,
  pch = 19,
  col = "grey60",
  cex = 0.7,
  mu_pch = 8,
  mu_col = "orange",
  mu_cex = 1,
  arrow_col = "orange",
  arrow_lwd = 2.5,
  arrow_len = 0.08,
  add = FALSE,
  xlab = NULL,
  ylab = NULL,
  main = NULL,
  add_legend = !is.null(t_vec),
  legend_title = "t",
  pal = (grDevices::colorRampPalette(c("#2b8cbe", "white", "#de2d26")))(256),
  ...
)

Arguments

mu_list

A length-\(K\) list of mean vectors. Each element should be a numeric vector of length at least 2, where the first two entries correspond to the coordinates in X2.

X2

Numeric matrix of dimension \(n \times 2\) giving the embedding coordinates for observations.

t_vec

Optional numeric vector of length \(n\). If provided, points are colored by t_vec using pal.

mu_order

Optional integer permutation of 1:K specifying the plotting order of components. Defaults to 1:K.

pch

Point character for observations (passed to points / plot).

col

Observation color used when t_vec is NULL.

cex

Point size for observations.

mu_pch

Point character for component means.

mu_col

Color for component means.

mu_cex

Point size for component means.

arrow_col

Color for arrows connecting consecutive component means.

arrow_lwd

Line width for arrows.

arrow_len

Arrow head length (see arrows).

add

Logical; if TRUE, add to an existing plot. If FALSE, create a new plot.

xlab, ylab

Axis labels. If NULL, defaults to "dim 1" and "dim 2".

main

Plot title. If NULL, uses a default title.

add_legend

Logical; if TRUE and t_vec is provided, add a small legend (quantile ticks).

legend_title

Title for the legend when t_vec is provided.

pal

A vector of colors used to map t_vec to point colors. Defaults to a blue-white-red palette.

...

Additional arguments passed to plot when add = FALSE.

Value

An invisible list with elements:

• X2: the embedding coordinates used for plotting.

• mu: the \(K \times 2\) matrix of plotted component means (after mu_order).

• mu_order: the component order used.

Examples

set.seed(1)
n <- 50
X2 <- cbind(rnorm(n), rnorm(n))
mu_list <- list(c(-1, -1), c(0, 0), c(1, 1))
t_vec <- rnorm(n)

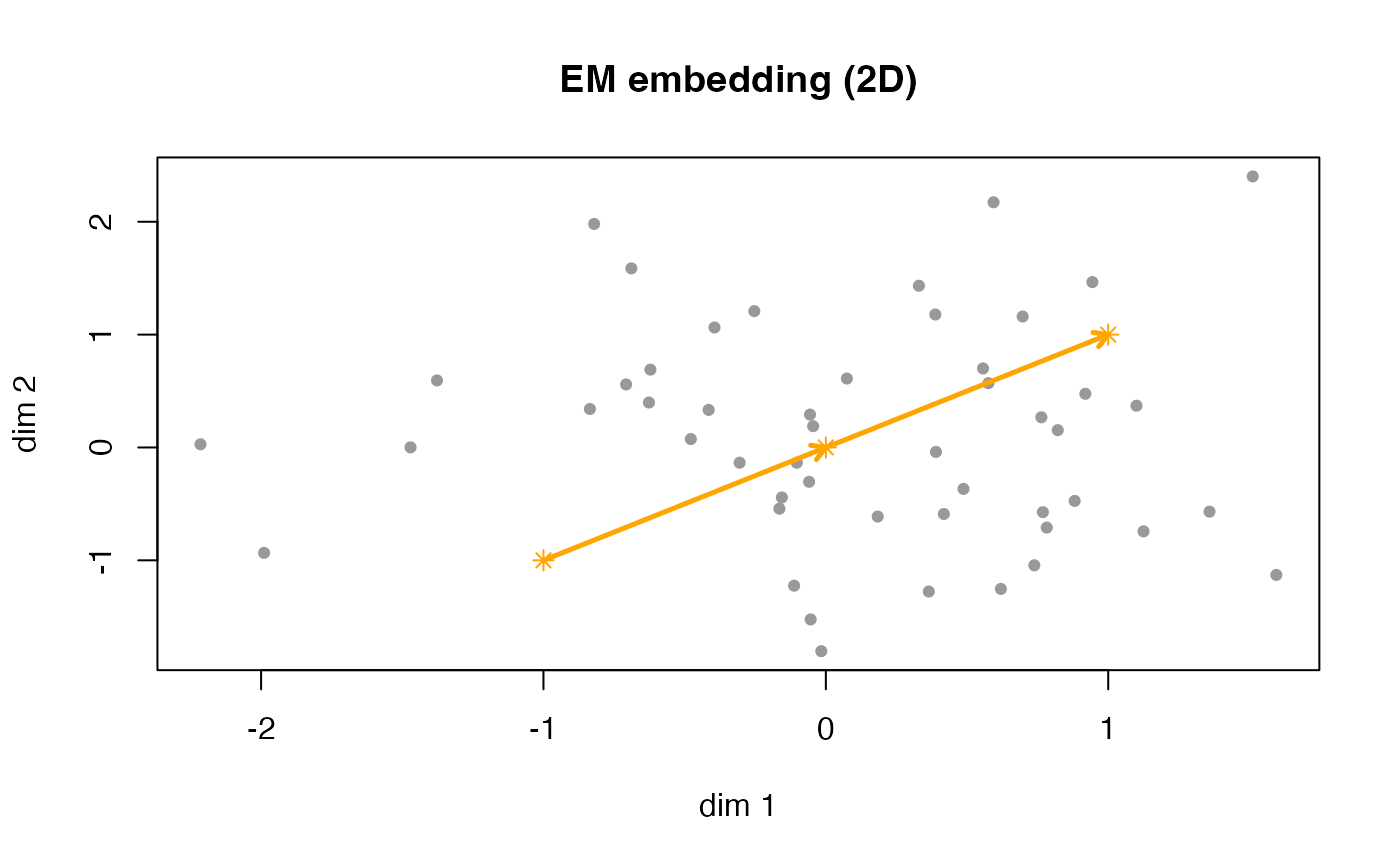

plot_EM_embedding2D(mu_list, X2)

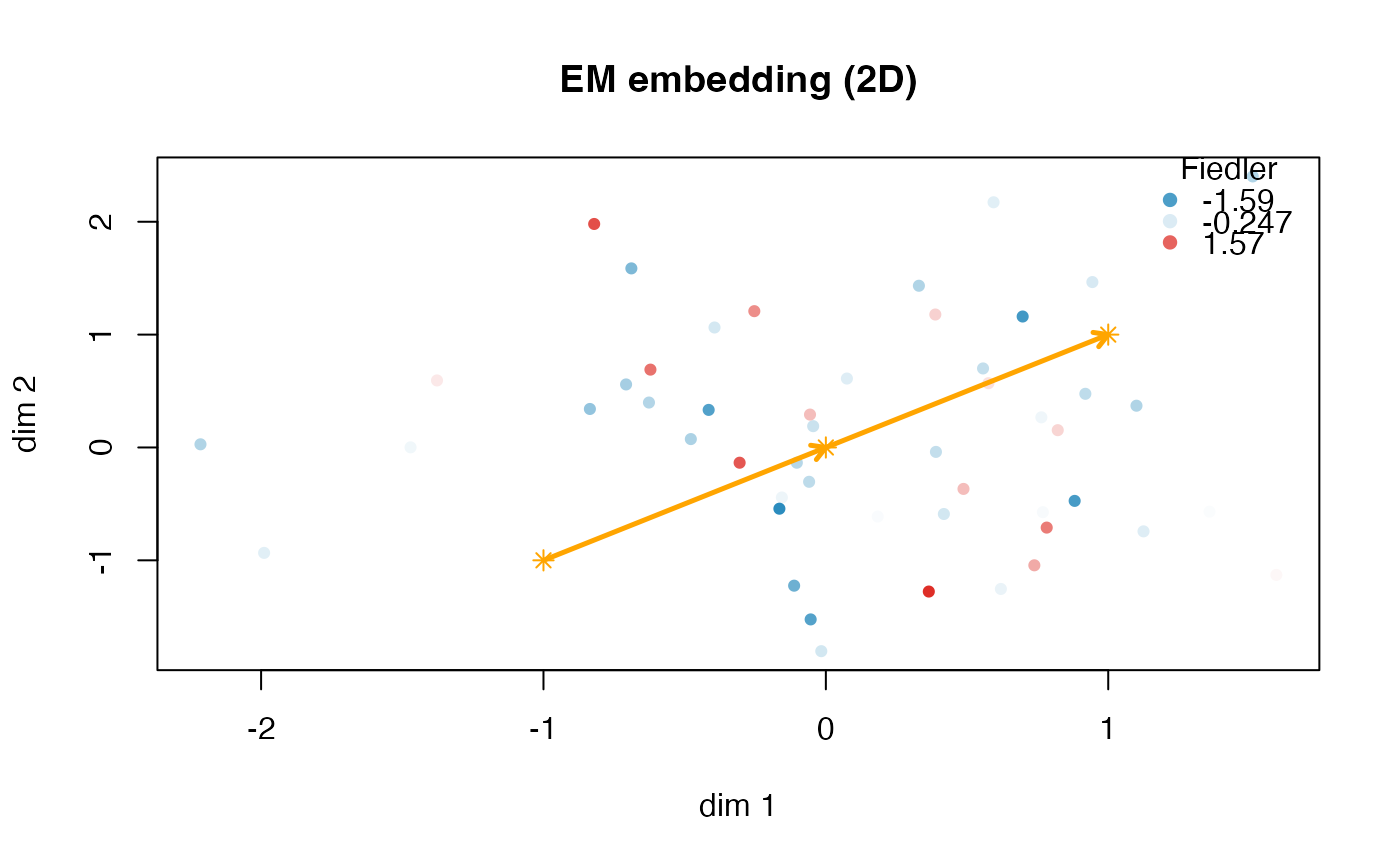

plot_EM_embedding2D(mu_list, X2, t_vec = t_vec, legend_title = "Fiedler")
